1 / 3H-Type Vertical Axis Wind Turbines
Aervon 5 kW H-Type Vertical Axis Wind Turbine
This Aervon three-blade H-type turbine is designed for hybrid and off-grid wind applications where site wind conditions, structure, controller and inverter configuration are suitable.
off-gridhybrid
Technical specifications
- Rated power
- 5 kW
- Blade quantity
- 3
- Blade length
- 2.8 m
- Wheel diameter
- 1.8 m
- Rated voltage
- 48 V to 380 V
- Start-up speed
- 2.0 m/s
- Rated wind speed
- 10 m/s
- Cut-in speed
- 2.5 m/s
- Survival wind speed
- 40 m/s
- Generator type
- Maglev coreless generator
- Protection level
- IP54
Need a parameter that is not listed? Contact Aervon for the complete technical specification.
Suitable applications

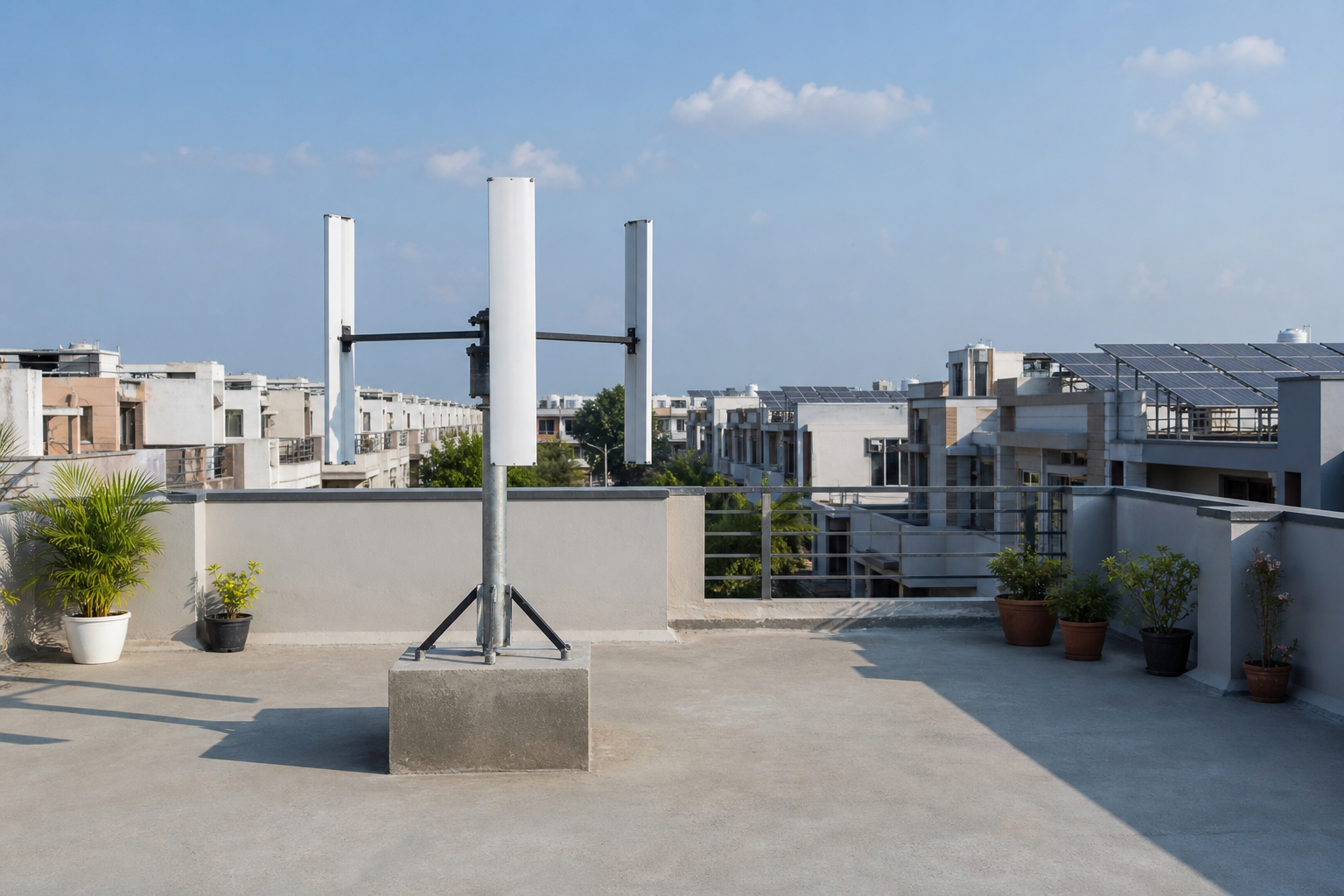

Commercial rooftops
Farms
Industrial support loads
Hybrid systems
Brochure access
Request the latest technical sheet and our team will share the appropriate document for your project.
